open-telenetry-2-演示-环境搭建

Barrett 收录于技术

2022-10-08 约 10095 字预计阅读 21 分钟

环境

kubernetes： 1.20.11

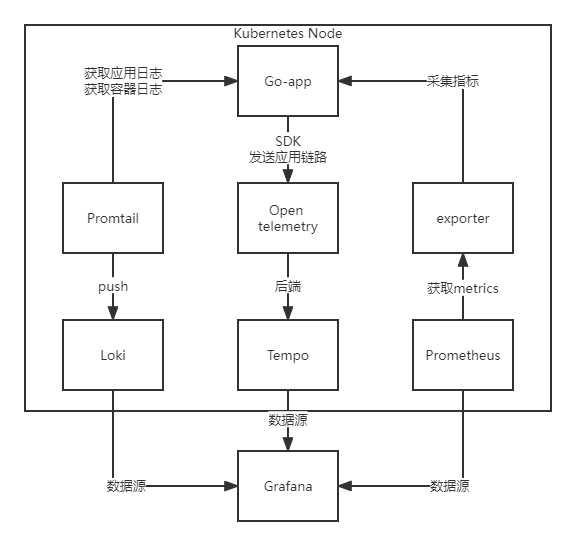

架构

解释

其中Prometheus、Promtail、Loki、Tempo、Grafana、Open Telemetry均是开源最新版

go-app是作者自己使用otel的opentelemetry-go-contrib写的一个http demo，可以生产TraceID，并且嵌套多次context，用来展示链路。然后发送给Otel telemetry。

配置

Promtail

1
2


# 部署命令
helm install promtail -n loki grafana/promtail --set config.clients[0].url=http://loki-loki-distributed-gateway/loki/api/v1/push

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86


server:
  log_level: info
  http_listen_port: 3101


clients:
  - url: http://loki-loki-distributed-gateway/loki/api/v1/push

positions:
  filename: /run/promtail/positions.yaml

scrape_configs:
  - job_name: kubernetes-pods
    pipeline_stages:
      - json:
          expressions:
            output: log
      - output:
          source: output
    kubernetes_sd_configs:
      - role: pod
    relabel_configs:
      - source_labels:
          - __meta_kubernetes_pod_controller_name
        regex: ([0-9a-z-.]+?)(-[0-9a-f]{8,10})?
        action: replace
        target_label: __tmp_controller_name
      - source_labels:
          - __meta_kubernetes_pod_label_app_kubernetes_io_name
          - __meta_kubernetes_pod_label_app
          - __tmp_controller_name
          - __meta_kubernetes_pod_name
        regex: ^;*([^;]+)(;.*)?$
        action: replace
        target_label: app
      - source_labels:
          - __meta_kubernetes_pod_label_app_kubernetes_io_instance
          - __meta_kubernetes_pod_label_release
        regex: ^;*([^;]+)(;.*)?$
        action: replace
        target_label: instance
      - source_labels:
          - __meta_kubernetes_pod_label_app_kubernetes_io_component
          - __meta_kubernetes_pod_label_component
        regex: ^;*([^;]+)(;.*)?$
        action: replace
        target_label: component
      - action: replace
        source_labels:
        - __meta_kubernetes_pod_node_name
        target_label: node_name
      - action: replace
        source_labels:
        - __meta_kubernetes_namespace
        target_label: namespace
      - action: replace
        replacement: $1
        separator: /
        source_labels:
        - namespace
        - app
        target_label: job
      - action: replace
        source_labels:
        - __meta_kubernetes_pod_name
        target_label: pod
      - action: replace
        source_labels:
        - __meta_kubernetes_pod_container_name
        target_label: container
      - action: replace
        replacement: /var/log/pods/*$1/*.log
        separator: /
        source_labels:
        - __meta_kubernetes_pod_uid
        - __meta_kubernetes_pod_container_name
        target_label: __path__
      - action: replace
        regex: true/(.*)
        replacement: /var/log/pods/*$1/*.log
        separator: /
        source_labels:
        - __meta_kubernetes_pod_annotationpresent_kubernetes_io_config_hash
        - __meta_kubernetes_pod_annotation_kubernetes_io_config_hash
        - __meta_kubernetes_pod_container_name
        target_label: __path__

Prometheus、Grafana

原本集群中就有一套现成的Prometheus + Grafana，配置较多，不展示详细配置，使用的是Prometheus-kube自带的配置。

Open Telemetry

opentelemetry部署之前必须安装cert-manager

1
2


# 部署方式是operator
kubectl apply -f https://github.com/open-telemetry/opentelemetry-operator/releases/latest/download/opentelemetry-operator.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89


apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  name: otel
  namespace: opentelemetry
spec:
  image: otel/opentelemetry-collector-contrib:0.72.0
  config: |
    receivers:
      jaeger:
        protocols:
          grpc:
          thrift_binary:
          thrift_compact:
          thrift_http:
      otlp:
        protocols:
          grpc:
          http:
      otlp/servicegraph:
        protocols:
          grpc:
            endpoint: localhost:12345
    exporters:
      logging:
        loglevel: debug
      otlp:
        endpoint: tempo-distributor-discovery.tempo:4317
        tls:
          insecure: true
      loki:
        endpoint: http://loki-distributed-gateway.loki/loki/api/v1/push
        tls:
          insecure: true
        sending_queue:
          enabled: true
          num_consumers: 100
          queue_size: 10000
      prometheus/servicegraph:
        endpoint: 0.0.0.0:9099

    processors:
      servicegraph:
        metrics_exporter: prometheus/servicegraph
        latency_histogram_buckets: [2ms, 4ms, 6ms, 8ms, 10ms, 50ms, 100ms, 200ms, 500ms, 800ms, 1s, 1400ms, 2s, 5s, 10s, 15s]
        dimensions:
          - k8s.cluster.id
          - k8s.namespace.name
        store:
          ttl: 60s
          max_items: 100000
      attributes:
        actions:
        - action: insert
          key: loki.attribute.labels
          value: http_status_code
        - action: insert
          key: http_status_code
          value: 500

      resource:
        attributes:
        - action: insert
          key: loki.resource.labels
          value: host_name, pod_name
        - action: insert
          key: host_name
          value: guarana
        - action: insert
          key: pod_name
          value: guarana-pod-01

    extensions:

    service:
      extensions:
      pipelines:
        traces:
          receivers: [otlp]
          processors: [servicegraph]
          exporters: [otlp]
        logs:
          receivers: [otlp]
          #processors: [resource, attributes]
          exporters: [loki]
        metrics/servicegraph:
          receivers: [otlp/servicegraph]
          processors: []
          exporters: [prometheus/servicegraph]

Loki

1
2


# 运行命令 value.yaml详细内容请站内搜索loki日志系统
helm upgrade --install loki --namespace=loki grafana/loki-distributed -f values.yaml

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116


auth_enabled: false
chunk_store_config:
  max_look_back_period: 0s
  chunk_cache_config:
    redis:
      endpoint: redis:6379
      expiration: 1h
      password: "000000"
  write_dedupe_cache_config:
    redis:
      endpoint: redis:6379
      expiration: 1h
      password: "000000"
common:
  compactor_address: http://loki-distributed-compactor:3100
compactor:
  shared_store: filesystem
distributor:
  ring:
    kvstore:
      store: memberlist
frontend:
  compress_responses: true
  log_queries_longer_than: 5s
  tail_proxy_url: http://loki-distributed-querier:3100
frontend_worker:
  frontend_address: loki-distributed-query-frontend:9095
ingester:
  chunk_block_size: 262144
  chunk_encoding: snappy
  chunk_idle_period: 3m
  chunk_retain_period: 1m
  lifecycler:
    ring:
      kvstore:
        store: memberlist
      replication_factor: 1
  max_transfer_retries: 0
  wal:
    dir: /var/loki/wal
limits_config:
  enforce_metric_name: false
  ingestion_burst_size_mb: 50
  ingestion_rate_mb: 50
  per_stream_rate_limit: 512M
  per_stream_rate_limit_burst: 1024M
  ingestion_rate_strategy: global
  max_cache_freshness_per_query: 10m
  max_global_streams_per_user: 10000
  max_query_length: 12000h
  max_query_parallelism: 16
  max_streams_per_user: 0
  reject_old_samples: true
  reject_old_samples_max_age: 168h
  split_queries_by_interval: 5m
memberlist:
  join_members:
  - loki-distributed-memberlist
query_range:
  align_queries_with_step: true
  cache_results: true
  max_retries: 5
  results_cache:
    cache:
      redis:
        endpoint: redis:6379
        expiration: 10m
        password: "000000"
ruler:
  alertmanager_url: https://webhook.example.com
  enable_alertmanager_v2: true
  enable_api: true
  enable_sharding: true
  flush_period: 1m
  rule_path: /var/loki/rules
  storage:
    s3:
      bucketnames: helian-loki
      s3: s3://xxx:xxx@oss-cn-hangzhou-internal.aliyuncs.com
    type: s3
runtime_config:
  file: /var/loki-distributed-runtime/runtime.yaml
schema_config:
  configs:
  - from: "2020-07-01"
    index:
      period: 24h
      prefix: index_
    object_store: aws
    schema: v11
    store: boltdb-shipper
server:
  graceful_shutdown_timeout: 5s
  grpc_server_max_concurrent_streams: 1000
  http_server_idle_timeout: 120s
  http_server_write_timeout: 1m
  http_listen_port: 3100
  grpc_server_max_recv_msg_size: 1572864000
  grpc_server_max_send_msg_size: 1572864000
storage_config:
  aws:
    bucketnames: helian-loki-prod
    s3: s3://xxx:xxx@oss-cn-hangzhou-internal.aliyuncs.com
  boltdb_shipper:
    active_index_directory: /var/loki/boltdb-shipper-active
    cache_location: /var/loki/boltdb-shipper-cache
    cache_ttl: 24h
    shared_store: s3
  index_queries_cache_config:
    redis:
      endpoint: redis:6379
      expiration: 1h
      password: "000000"
table_manager:
  retention_deletes_enabled: true
  retention_period: 168h

Tempo

1
2
3
4
5
6
7
8
9


# 运行命令
# 默认tag是master，master正在开发中，所以选择了一个最新的release版本
helm pull grafana/tempo-distributed --version 1.2.11

# 如果使用bitnami安装的minio，那么需要在控制台新建accesskey，web账号密码只能写入，在查询时会报错：
# level=warn ts=2023-06-14T05:13:06.959359516Z caller=querier.go:262 msg="failed to query 1 blocks" blockErrs="error finding trace by id, blockID: 813bbe7b-08d4-4ebc-ab55-15fa6d9fa0ad: error reading row from backend: error in range read from s3 backend, bucket: helian-tempo, objName: single-tenant/813bbe7b-08d4-4ebc-ab55-15fa6d9fa0ad/data.parquet: Get \"http://minio.minio:9000/helian-tempo/single-tenant/813bbe7b-08d4-4ebc-ab55-15fa6d9fa0ad/data.parquet\": context deadline exceeded"
# 未解决该问题，最终改为使用官方包的minio验证成功

# 当tempo使用local本地存储时，无法使用block_retention进行数据生命周期来清理，原因是compactor在进行delete操作时必须能够访问存储，而local方式存储无法共享，除非是使用NFS等共享存储

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101


# configmap
    compactor:
      compaction:
        block_retention: 360h
        compacted_block_retention: 1h
        compaction_cycle: 30s
        compaction_window: 1h
        max_block_bytes: 107374182400
        max_compaction_objects: 6000000
        max_time_per_tenant: 5m
        retention_concurrency: 10
        v2_in_buffer_bytes: 5242880
        v2_out_buffer_bytes: 20971520
        v2_prefetch_traces_count: 1000
      ring:
        kvstore:
          store: memberlist
    distributor:
      receivers:
        otlp:
          protocols:
            grpc:
              endpoint: 0.0.0.0:4317
            http:
              endpoint: 0.0.0.0:4318
      ring:
        kvstore:
          store: memberlist
    ingester:
      lifecycler:
        ring:
          kvstore:
            store: memberlist
          replication_factor: 3
        tokens_file_path: /var/tempo/tokens.json
    memberlist:
      abort_if_cluster_join_fails: false
      join_members:
      - tempo-gossip-ring
    multitenancy_enabled: false
    overrides:
      metrics_generator_processors:
      - service-graphs
      - span-metrics
      per_tenant_override_config: /conf/overrides.yaml
      max_bytes_per_trace: 10000000
      max_traces_per_user: 100000
    querier:
      frontend_worker:
        frontend_address: tempo-query-frontend-discovery:9095
      max_concurrent_queries: 20
      search:
        external_endpoints: []
        external_hedge_requests_at: 8s
        external_hedge_requests_up_to: 2
        prefer_self: 10
        query_timeout: 30s
      trace_by_id:
        query_timeout: 10s
    query_frontend:
      max_retries: 2
      search:
        concurrent_jobs: 1000
        target_bytes_per_job: 104857600
      tolerate_failed_blocks: 0
      trace_by_id:
        hedge_requests_at: 2s
        hedge_requests_up_to: 2
        query_shards: 50
    server:
      grpc_server_max_recv_msg_size: 4194304
      grpc_server_max_send_msg_size: 4194304
      http_listen_port: 3100
      http_server_read_timeout: 30s
      http_server_write_timeout: 30s
      log_format: logfmt
      log_level: info
    storage:
      trace:
        backend: s3
        block:
          version: vParquet
        blocklist_poll: 5m
        cache: memcached
        local:
          path: /var/tempo/traces
        memcached:
          consistent_hash: true
          host: tempo-memcached
          service: memcached-client
          timeout: 500ms
        s3:
          access_key: 68EjuVmw8BH63ZptSKI6
          bucket: helian-tempo
          endpoint: tempo-minio:9000
          insecure: true
          secret_key: I4Aep8CNNUHRKWGpJUOFXGsYqdGvqo5BbOh8pQUD
        wal:
          path: /var/tempo/wal
    usage_report:
      reporting_enabled: true

   1
   2
   3
   4
   5
   6
   7
   8
   9
  10
  11
  12
  13
  14
  15
  16
  17
  18
  19
  20
  21
  22
  23
  24
  25
  26
  27
  28
  29
  30
  31
  32
  33
  34
  35
  36
  37
  38
  39
  40
  41
  42
  43
  44
  45
  46
  47
  48
  49
  50
  51
  52
  53
  54
  55
  56
  57
  58
  59
  60
  61
  62
  63
  64
  65
  66
  67
  68
  69
  70
  71
  72
  73
  74
  75
  76
  77
  78
  79
  80
  81
  82
  83
  84
  85
  86
  87
  88
  89
  90
  91
  92
  93
  94
  95
  96
  97
  98
  99
 100
 101
 102
 103
 104
 105
 106
 107
 108
 109
 110
 111
 112
 113
 114
 115
 116
 117
 118
 119
 120
 121
 122
 123
 124
 125
 126
 127
 128
 129
 130
 131
 132
 133
 134
 135
 136
 137
 138
 139
 140
 141
 142
 143
 144
 145
 146
 147
 148
 149
 150
 151
 152
 153
 154
 155
 156
 157
 158
 159
 160
 161
 162
 163
 164
 165
 166
 167
 168
 169
 170
 171
 172
 173
 174
 175
 176
 177
 178
 179
 180
 181
 182
 183
 184
 185
 186
 187
 188
 189
 190
 191
 192
 193
 194
 195
 196
 197
 198
 199
 200
 201
 202
 203
 204
 205
 206
 207
 208
 209
 210
 211
 212
 213
 214
 215
 216
 217
 218
 219
 220
 221
 222
 223
 224
 225
 226
 227
 228
 229
 230
 231
 232
 233
 234
 235
 236
 237
 238
 239
 240
 241
 242
 243
 244
 245
 246
 247
 248
 249
 250
 251
 252
 253
 254
 255
 256
 257
 258
 259
 260
 261
 262
 263
 264
 265
 266
 267
 268
 269
 270
 271
 272
 273
 274
 275
 276
 277
 278
 279
 280
 281
 282
 283
 284
 285
 286
 287
 288
 289
 290
 291
 292
 293
 294
 295
 296
 297
 298
 299
 300
 301
 302
 303
 304
 305
 306
 307
 308
 309
 310
 311
 312
 313
 314
 315
 316
 317
 318
 319
 320
 321
 322
 323
 324
 325
 326
 327
 328
 329
 330
 331
 332
 333
 334
 335
 336
 337
 338
 339
 340
 341
 342
 343
 344
 345
 346
 347
 348
 349
 350
 351
 352
 353
 354
 355
 356
 357
 358
 359
 360
 361
 362
 363
 364
 365
 366
 367
 368
 369
 370
 371
 372
 373
 374
 375
 376
 377
 378
 379
 380
 381
 382
 383
 384
 385
 386
 387
 388
 389
 390
 391
 392
 393
 394
 395
 396
 397
 398
 399
 400
 401
 402
 403
 404
 405
 406
 407
 408
 409
 410
 411
 412
 413
 414
 415
 416
 417
 418
 419
 420
 421
 422
 423
 424
 425
 426
 427
 428
 429
 430
 431
 432
 433
 434
 435
 436
 437
 438
 439
 440
 441
 442
 443
 444
 445
 446
 447
 448
 449
 450
 451
 452
 453
 454
 455
 456
 457
 458
 459
 460
 461
 462
 463
 464
 465
 466
 467
 468
 469
 470
 471
 472
 473
 474
 475
 476
 477
 478
 479
 480
 481
 482
 483
 484
 485
 486
 487
 488
 489
 490
 491
 492
 493
 494
 495
 496
 497
 498
 499
 500
 501
 502
 503
 504
 505
 506
 507
 508
 509
 510
 511
 512
 513
 514
 515
 516
 517
 518
 519
 520
 521
 522
 523
 524
 525
 526
 527
 528
 529
 530
 531
 532
 533
 534
 535
 536
 537
 538
 539
 540
 541
 542
 543
 544
 545
 546
 547
 548
 549
 550
 551
 552
 553
 554
 555
 556
 557
 558
 559
 560
 561
 562
 563
 564
 565
 566
 567
 568
 569
 570
 571
 572
 573
 574
 575
 576
 577
 578
 579
 580
 581
 582
 583
 584
 585
 586
 587
 588
 589
 590
 591
 592
 593
 594
 595
 596
 597
 598
 599
 600
 601
 602
 603
 604
 605
 606
 607
 608
 609
 610
 611
 612
 613
 614
 615
 616
 617
 618
 619
 620
 621
 622
 623
 624
 625
 626
 627
 628
 629
 630
 631
 632
 633
 634
 635
 636
 637
 638
 639
 640
 641
 642
 643
 644
 645
 646
 647
 648
 649
 650
 651
 652
 653
 654
 655
 656
 657
 658
 659
 660
 661
 662
 663
 664
 665
 666
 667
 668
 669
 670
 671
 672
 673
 674
 675
 676
 677
 678
 679
 680
 681
 682
 683
 684
 685
 686
 687
 688
 689
 690
 691
 692
 693
 694
 695
 696
 697
 698
 699
 700
 701
 702
 703
 704
 705
 706
 707
 708
 709
 710
 711
 712
 713
 714
 715
 716
 717
 718
 719
 720
 721
 722
 723
 724
 725
 726
 727
 728
 729
 730
 731
 732
 733
 734
 735
 736
 737
 738
 739
 740
 741
 742
 743
 744
 745
 746
 747
 748
 749
 750
 751
 752
 753
 754
 755
 756
 757
 758
 759
 760
 761
 762
 763
 764
 765
 766
 767
 768
 769
 770
 771
 772
 773
 774
 775
 776
 777
 778
 779
 780
 781
 782
 783
 784
 785
 786
 787
 788
 789
 790
 791
 792
 793
 794
 795
 796
 797
 798
 799
 800
 801
 802
 803
 804
 805
 806
 807
 808
 809
 810
 811
 812
 813
 814
 815
 816
 817
 818
 819
 820
 821
 822
 823
 824
 825
 826
 827
 828
 829
 830
 831
 832
 833
 834
 835
 836
 837
 838
 839
 840
 841
 842
 843
 844
 845
 846
 847
 848
 849
 850
 851
 852
 853
 854
 855
 856
 857
 858
 859
 860
 861
 862
 863
 864
 865
 866
 867
 868
 869
 870
 871
 872
 873
 874
 875
 876
 877
 878
 879
 880
 881
 882
 883
 884
 885
 886
 887
 888
 889
 890
 891
 892
 893
 894
 895
 896
 897
 898
 899
 900
 901
 902
 903
 904
 905
 906
 907
 908
 909
 910
 911
 912
 913
 914
 915
 916
 917
 918
 919
 920
 921
 922
 923
 924
 925
 926
 927
 928
 929
 930
 931
 932
 933
 934
 935
 936
 937
 938
 939
 940
 941
 942
 943
 944
 945
 946
 947
 948
 949
 950
 951
 952
 953
 954
 955
 956
 957
 958
 959
 960
 961
 962
 963
 964
 965
 966
 967
 968
 969
 970
 971
 972
 973
 974
 975
 976
 977
 978
 979
 980
 981
 982
 983
 984
 985
 986
 987
 988
 989
 990
 991
 992
 993
 994
 995
 996
 997
 998
 999
1000
1001
1002
1003
1004
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1034
1035
1036
1037
1038
1039
1040
1041
1042
1043
1044
1045
1046
1047
1048
1049
1050
1051
1052
1053
1054
1055
1056
1057
1058
1059
1060
1061
1062
1063
1064
1065
1066
1067
1068
1069
1070
1071
1072
1073
1074
1075
1076
1077
1078
1079
1080
1081
1082
1083
1084
1085
1086
1087
1088
1089
1090
1091
1092
1093
1094
1095
1096
1097
1098
1099
1100
1101
1102
1103
1104
1105
1106
1107
1108
1109
1110
1111
1112
1113
1114
1115
1116
1117
1118
1119
1120
1121
1122
1123
1124
1125
1126
1127
1128
1129
1130
1131
1132
1133
1134
1135
1136
1137
1138
1139
1140
1141
1142
1143
1144
1145
1146
1147
1148
1149
1150
1151
1152
1153
1154
1155
1156
1157
1158
1159
1160
1161
1162
1163
1164
1165
1166
1167
1168
1169
1170
1171
1172
1173
1174
1175
1176
1177
1178
1179
1180
1181
1182
1183
1184
1185
1186
1187
1188
1189
1190
1191
1192
1193
1194
1195
1196
1197
1198
1199
1200
1201
1202
1203
1204
1205
1206
1207
1208
1209
1210
1211
1212
1213
1214
1215
1216
1217
1218
1219
1220
1221
1222
1223
1224
1225
1226
1227
1228
1229
1230
1231
1232
1233
1234
1235
1236
1237
1238
1239
1240
1241
1242
1243
1244
1245
1246
1247
1248
1249
1250
1251
1252
1253
1254
1255
1256
1257
1258
1259
1260
1261
1262
1263
1264
1265
1266
1267
1268
1269
1270
1271
1272
1273
1274
1275
1276
1277
1278
1279
1280
1281
1282
1283
1284
1285
1286
1287
1288
1289
1290
1291
1292
1293
1294
1295
1296
1297
1298
1299
1300
1301
1302
1303
1304
1305
1306
1307
1308
1309
1310
1311
1312
1313
1314
1315
1316
1317
1318
1319
1320
1321
1322
1323
1324
1325
1326
1327
1328
1329
1330
1331
1332
1333
1334
1335
1336
1337
1338
1339
1340
1341
1342
1343
1344
1345
1346
1347
1348
1349
1350
1351
1352
1353
1354
1355
1356
1357
1358
1359
1360
1361
1362
1363
1364
1365
1366
1367
1368
1369
1370
1371
1372
1373
1374
1375
1376
1377
1378
1379
1380
1381
1382
1383
1384
1385
1386
1387
1388
1389
1390
1391
1392
1393
1394
1395
1396
1397
1398
1399
1400
1401
1402
1403
1404
1405
1406
1407
1408
1409
1410
1411
1412
1413
1414
1415
1416
1417
1418
1419
1420
1421
1422
1423
1424
1425
1426
1427
1428
1429
1430
1431
1432
1433
1434
1435
1436
1437
1438
1439
1440
1441
1442
1443
1444
1445
1446
1447
1448
1449
1450
1451
1452
1453
1454
1455
1456
1457
1458
1459
1460
1461
1462
1463
1464
1465
1466
1467
1468
1469
1470
1471
1472
1473
1474
1475
1476
1477
1478
1479
1480
1481
1482
1483
1484
1485
1486
1487
1488
1489
1490
1491
1492
1493
1494
1495
1496
1497
1498
1499
1500
1501
1502
1503
1504
1505
1506
1507
1508
1509
1510
1511
1512
1513
1514
1515
1516
1517
1518
1519
1520
1521
1522
1523
1524
1525
1526
1527
1528
1529
1530
1531
1532
1533
1534
1535
1536
1537
1538
1539
1540
1541
1542
1543
1544
1545
1546
1547
1548
1549
1550
1551
1552
1553
1554
1555
1556
1557
1558
1559
1560
1561
1562
1563
1564
1565
1566
1567
1568
1569
1570
1571
1572
1573
1574
1575
1576
1577
1578
1579
1580
1581
1582
1583
1584
1585
1586
1587
1588
1589
1590
1591
1592
1593
1594
1595
1596
1597
1598
1599
1600
1601
1602
1603
1604
1605
1606
1607
1608
1609
1610
1611
1612
1613
1614
1615
1616
1617
1618
1619
1620
1621
1622
1623
1624
1625
1626
1627
1628
1629
1630
1631
1632
1633
1634
1635
1636
1637
1638
1639
1640
1641
1642
1643
1644
1645
1646
1647
1648
1649
1650
1651
1652
1653
1654
1655
1656
1657
1658
1659
1660
1661
1662
1663
1664
1665
1666
1667
1668
1669
1670
1671
1672
1673
1674
1675
1676
1677
1678
1679
1680
1681
1682
1683
1684
1685
1686
1687
1688
1689
1690
1691
1692
1693
1694
1695
1696
1697
1698
1699
1700
1701
1702
1703
1704
1705
1706
1707
1708
1709
1710
1711
1712
1713
1714
1715
1716
1717
1718
1719
1720
1721
1722
1723
1724
1725
1726
1727
1728
1729
1730
1731
1732
1733
1734
1735
1736
1737
1738
1739
1740
1741
1742
1743
1744
1745
1746
1747
1748
1749
1750
1751
1752
1753
1754
1755
1756
1757
1758
1759
1760
1761
1762
1763
1764
1765
1766
1767
1768
1769
1770
1771
1772
1773
1774
1775
1776
1777
1778
1779
1780
1781
1782
1783
1784
1785
1786
1787
1788
1789
1790
1791
1792
1793
1794
1795
1796
1797
1798
1799
1800
1801
1802
1803
1804
1805
1806
1807
1808
1809
1810
1811
1812
1813
1814
1815
1816
1817
1818
1819
1820
1821
1822
1823
1824
1825
1826
1827
1828
1829
1830
1831
1832
1833
1834
1835
1836
1837
1838
1839
1840
1841
1842
1843
1844
1845
1846
1847
1848
1849
1850


global:
  image:
    # -- Overrides the Docker registry globally for all images, excluding enterprise.
    registry: docker.io
    # -- Optional list of imagePullSecrets for all images, excluding enterprise.
    # Names of existing secrets with private container registry credentials.
    # Ref: https://kubernetes.io/docs/concepts/containers/images/#specifying-imagepullsecrets-on-a-pod
    # Example:
    # pullSecrets: [ my-dockerconfigjson-secret ]
    pullSecrets: []
  # -- Overrides the priorityClassName for all pods
  priorityClassName: null
  # -- configures cluster domain ("cluster.local" by default)
  clusterDomain: 'cluster.local'
  # -- configures DNS service name
  dnsService: 'kube-dns'
  # -- configures DNS service namespace
  dnsNamespace: 'kube-system'
fullnameOverride: ''
# fullnameOverride: tempo

# -- Configuration is loaded from the secret called 'externalConfigSecretName'.
# If 'useExternalConfig' is true, then the configuration is not generated, just
# consumed.  Top level keys for `tempo.yaml` and `overrides.yaml` are to be
# provided by the user.
useExternalConfig: false

# -- Defines what kind of object stores the configuration, a ConfigMap or a Secret.
# In order to move sensitive information (such as credentials) from the ConfigMap/Secret to a more secure location (e.g. vault), it is possible to use [environment variables in the configuration](https://grafana.com/docs/mimir/latest/operators-guide/configuring/reference-configuration-parameters/#use-environment-variables-in-the-configuration).
# Such environment variables can be then stored in a separate Secret and injected via the global.extraEnvFrom value. For details about environment injection from a Secret please see [Secrets](https://kubernetes.io/docs/concepts/configuration/secret/#use-case-as-container-environment-variables).
configStorageType: ConfigMap

# -- Name of the Secret or ConfigMap that contains the configuration (used for naming even if config is internal).
externalConfigSecretName: '{{ include "tempo.resourceName" (dict "ctx" . "component" "config") }}'

# -- When 'useExternalConfig' is true, then changing 'externalConfigVersion' triggers restart of services - otherwise changes to the configuration cause a restart.
externalConfigVersion: '0'

# -- If true, Tempo will report anonymous usage data about the shape of a deployment to Grafana Labs
reportingEnabled: true

tempo:
  image:
    # -- The Docker registry
    registry: docker.io
    # -- Optional list of imagePullSecrets. Overrides `global.image.pullSecrets`
    pullSecrets: []
    # -- Docker image repository
    repository: grafana/tempo
    # -- Overrides the image tag whose default is the chart's appVersion
    tag: null
    pullPolicy: IfNotPresent
  readinessProbe:
    httpGet:
      path: /ready
      port: http-metrics
    initialDelaySeconds: 30
    timeoutSeconds: 1
  # -- Global labels for all tempo pods
  podLabels: {}
  # -- Common annotations for all pods
  podAnnotations: {}
  # -- SecurityContext holds container-level security attributes and common container settings
  securityContext:
    runAsNonRoot: true
    runAsUser: 1000
    runAsGroup: 1000
    allowPrivilegeEscalation: false
    capabilities:
      drop:
        - ALL
    readOnlyRootFilesystem: true
  # -- podSecurityContext holds pod-level security attributes and common container settings
  podSecurityContext:
    fsGroup: 1000
  # -- Structured tempo configuration
  structuredConfig: {}
  # -- Memberlist service configuration.
  memberlist:
    # -- Adds the appProtocol field to the memberlist service. This allows memberlist to work with istio protocol selection. Set the optional service protocol. Ex: "tcp", "http" or "https".
    appProtocol: null

serviceAccount:
  # -- Specifies whether a ServiceAccount should be created
  create: true
  # -- The name of the ServiceAccount to use.
  # If not set and create is true, a name is generated using the fullname template
  name: null
  # -- Image pull secrets for the service account
  imagePullSecrets: []
  # -- Annotations for the service account
  annotations: {}

rbac:
  # -- Specifies whether RBAC manifests should be created
  create: false
  # -- Specifies whether a PodSecurityPolicy should be created
  pspEnabled: false

# Configuration for the ingester
ingester:
  # -- Annotations for the ingester StatefulSet
  annotations: {}
  # -- Number of replicas for the ingester
  replicas: 3
  autoscaling:
    # -- Enable autoscaling for the ingester
    enabled: false
    # -- Minimum autoscaling replicas for the ingester
    minReplicas: 1
    # -- Maximum autoscaling replicas for the ingester
    maxReplicas: 3
    # -- Target CPU utilisation percentage for the ingester
    targetCPUUtilizationPercentage: 60
    # -- Target memory utilisation percentage for the ingester
    targetMemoryUtilizationPercentage:
  image:
    # -- The Docker registry for the ingester image. Overrides `tempo.image.registry`
    registry: null
    # -- Optional list of imagePullSecrets. Overrides `tempo.image.pullSecrets`
    pullSecrets: []
    # -- Docker image repository for the ingester image. Overrides `tempo.image.repository`
    repository: null
    # -- Docker image tag for the ingester image. Overrides `tempo.image.tag`
    tag: null
  # -- The name of the PriorityClass for ingester pods
  priorityClassName: null
  # -- Labels for ingester pods
  podLabels: {}
  # -- Annotations for ingester pods
  podAnnotations: {}
  # -- Additional CLI args for the ingester
  extraArgs: []
  # -- Environment variables to add to the ingester pods
  extraEnv: []
  # -- Environment variables from secrets or configmaps to add to the ingester pods
  extraEnvFrom: []
  # -- Resource requests and limits for the ingester
  resources: {}
  # -- Grace period to allow the ingester to shutdown before it is killed. Especially for the ingestor,
  # this must be increased. It must be long enough so ingesters can be gracefully shutdown flushing/transferring
  # all data and to successfully leave the member ring on shutdown.
  terminationGracePeriodSeconds: 300
  # -- topologySpread for ingester pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Defaults to allow skew no more then 1 node per AZ
  topologySpreadConstraints: |
    - maxSkew: 1
      topologyKey: failure-domain.beta.kubernetes.io/zone
      whenUnsatisfiable: ScheduleAnyway
      labelSelector:
        matchLabels:
          {{- include "tempo.selectorLabels" (dict "ctx" . "component" "ingester") | nindent 6 }}
  # -- Affinity for ingester pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Soft node and soft zone anti-affinity
  affinity: |
    podAntiAffinity:
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "ingester") | nindent 12 }}
            topologyKey: kubernetes.io/hostname
        - weight: 75
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "ingester") | nindent 12 }}
            topologyKey: failure-domain.beta.kubernetes.io/zone
  # -- Node selector for ingester pods
  nodeSelector: {}
  # -- Tolerations for ingester pods
  tolerations: []
  # -- Extra volumes for ingester pods
  extraVolumeMounts: []
  # -- Extra volumes for ingester deployment
  extraVolumes: []
  persistence:
    # -- Enable creating PVCs which is required when using boltdb-shipper
    enabled: false
    # -- use emptyDir with ramdisk instead of PVC. **Please note that all data in ingester will be lost on pod restart**
    inMemory: false
    # -- Size of persistent or memory disk
    size: 10Gi
    # -- Storage class to be used.
    # If defined, storageClassName: <storageClass>.
    # If set to "-", storageClassName: "", which disables dynamic provisioning.
    # If empty or set to null, no storageClassName spec is
    # set, choosing the default provisioner (gp2 on AWS, standard on GKE, AWS, and OpenStack).
    storageClass: null
    # -- Annotations for ingester's persist volume claim
    annotations: {}
  config:
    # -- Number of copies of spans to store in the ingester ring
    replication_factor: 3
    # -- Amount of time a trace must be idle before flushing it to the wal.
    trace_idle_period: null
    # -- How often to sweep all tenants and move traces from live -> wal -> completed blocks.
    flush_check_period: null
    # -- Maximum size of a block before cutting it
    max_block_bytes: null
    # -- Maximum length of time before cutting a block
    max_block_duration: null
    # -- Duration to keep blocks in the ingester after they have been flushed
    complete_block_timeout: null
  service:
    # -- Annotations for ingester service
    annotations: {}
  # -- Adds the appProtocol field to the ingester service. This allows ingester to work with istio protocol selection.
  appProtocol:
    # -- Set the optional grpc service protocol. Ex: "grpc", "http2" or "https"
    grpc: null

# Configuration for the metrics-generator
metricsGenerator:
  # -- Specifies whether a metrics-generator should be deployed
  enabled: false
  # -- Annotations for the metrics-generator StatefulSet
  annotations: {}
  # -- Number of replicas for the metrics-generator
  replicas: 1
  image:
    # -- The Docker registry for the metrics-generator image. Overrides `tempo.image.registry`
    registry: null
    # -- Optional list of imagePullSecrets. Overrides `tempo.image.pullSecrets`
    pullSecrets: []
    # -- Docker image repository for the metrics-generator image. Overrides `tempo.image.repository`
    repository: null
    # -- Docker image tag for the metrics-generator image. Overrides `tempo.image.tag`
    tag: null
  # -- The name of the PriorityClass for metrics-generator pods
  priorityClassName: null
  # -- Labels for metrics-generator pods
  podLabels: {}
  # -- Annotations for metrics-generator pods
  podAnnotations: {}
  # -- Additional CLI args for the metrics-generator
  extraArgs: []
  # -- Environment variables to add to the metrics-generator pods
  extraEnv: []
  # -- Environment variables from secrets or configmaps to add to the metrics-generator pods
  extraEnvFrom: []
  # -- Resource requests and limits for the metrics-generator
  resources: {}
  # -- Grace period to allow the metrics-generator to shutdown before it is killed. Especially for the ingestor,
  # this must be increased. It must be long enough so metrics-generators can be gracefully shutdown flushing/transferring
  # all data and to successfully leave the member ring on shutdown.
  terminationGracePeriodSeconds: 300
  # -- topologySpread for metrics-generator pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Defaults to allow skew no more then 1 node per AZ
  topologySpreadConstraints: |
    - maxSkew: 1
      topologyKey: failure-domain.beta.kubernetes.io/zone
      whenUnsatisfiable: ScheduleAnyway
      labelSelector:
        matchLabels:
          {{- include "tempo.selectorLabels" (dict "ctx" . "component" "metrics-generator") | nindent 6 }}
  # -- Affinity for metrics-generator pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Hard node and soft zone anti-affinity
  affinity: |
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - labelSelector:
            matchLabels:
              {{- include "tempo.selectorLabels" (dict "ctx" . "component" "metrics-generator") | nindent 10 }}
          topologyKey: kubernetes.io/hostname
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "metrics-generator") | nindent 12 }}
            topologyKey: failure-domain.beta.kubernetes.io/zone
  # -- Node selector for metrics-generator pods
  nodeSelector: {}
  # -- Tolerations for metrics-generator pods
  tolerations: []
  # -- The EmptyDir location where the /var/tempo will be mounted on. Defaults to local disk, can be set to memory.
  walEmptyDir: {}
    ## Here shows how to configure 1Gi memory as emptyDir.
    ## Ref: https://kubernetes.io/docs/reference/generated/kubernetes-api/v1.19/#emptydirvolumesource-v1-core
    # medium: "Memory"
    # sizeLimit: 1Gi
  # -- Extra volumes for metrics-generator pods
  extraVolumeMounts: []
  # -- Extra volumes for metrics-generator deployment
  extraVolumes: []
  # -- Default ports
  ports:
    - name: grpc
      port: 9095
      service: true
    - name: http-memberlist
      port: 7946
      service: false
    - name: http-metrics
      port: 3100
      service: true
  # -- More information on configuration: https://grafana.com/docs/tempo/latest/configuration/#metrics-generator
  config:
    registry:
      collection_interval: 15s
      external_labels: {}
      stale_duration: 15m
    processor:
      service_graphs:
        # -- Additional dimensions to add to the metrics. Dimensions are searched for in the
        # -- resource and span attributes and are added to the metrics if present.
        dimensions: []
        histogram_buckets: [0.1, 0.2, 0.4, 0.8, 1.6, 3.2, 6.4, 12.8]
        max_items: 10000
        wait: 10s
        workers: 10
      span_metrics:
        # -- Additional dimensions to add to the metrics along with the default dimensions.
        # -- Dimensions are searched for in the resource and span attributes and are added to the metrics if present.
        dimensions: []
        histogram_buckets: [0.002, 0.004, 0.008, 0.016, 0.032, 0.064, 0.128, 0.256, 0.512, 1.02, 2.05, 4.10]
    storage:
      path: /var/tempo/wal
      wal:
      remote_write_flush_deadline: 1m
      # -- A list of remote write endpoints.
      # -- https://prometheus.io/docs/prometheus/latest/configuration/configuration/#remote_write
      remote_write: []
  service:
    # -- Annotations for Metrics Generator service
    annotations: {}
  # -- Adds the appProtocol field to the metricsGenerator service. This allows metricsGenerator to work with istio protocol selection.
  appProtocol:
    # -- Set the optional grpc service protocol. Ex: "grpc", "http2" or "https"
    grpc: null

# Configuration for the distributor
distributor:
  # -- Number of replicas for the distributor
  replicas: 1
  autoscaling:
    # -- Enable autoscaling for the distributor
    enabled: false
    # -- Minimum autoscaling replicas for the distributor
    minReplicas: 1
    # -- Maximum autoscaling replicas for the distributor
    maxReplicas: 3
    # -- Target CPU utilisation percentage for the distributor
    targetCPUUtilizationPercentage: 60
    # -- Target memory utilisation percentage for the distributor
    targetMemoryUtilizationPercentage:
  image:
    # -- The Docker registry for the ingester image. Overrides `tempo.image.registry`
    registry: null
    # -- Optional list of imagePullSecrets. Overrides `tempo.image.pullSecrets`
    pullSecrets: []
    # -- Docker image repository for the ingester image. Overrides `tempo.image.repository`
    repository: null
    # -- Docker image tag for the ingester image. Overrides `tempo.image.tag`
    tag: null
  service:
    # -- Annotations for distributor service
    annotations: {}
    # -- Type of service for the distributor
    type: ClusterIP
    # -- If type is LoadBalancer you can assign the IP to the LoadBalancer
    loadBalancerIP: ''
    # -- If type is LoadBalancer limit incoming traffic from IPs.
    loadBalancerSourceRanges: []
  # -- The name of the PriorityClass for distributor pods
  priorityClassName: null
  # -- Labels for distributor pods
  podLabels: {}
  # -- Annotations for distributor pods
  podAnnotations: {}
  # -- Additional CLI args for the distributor
  extraArgs: []
  # -- Environment variables to add to the distributor pods
  extraEnv: []
  # -- Environment variables from secrets or configmaps to add to the distributor pods
  extraEnvFrom: []
  # -- Resource requests and limits for the distributor
  resources: {}
  # -- Grace period to allow the distributor to shutdown before it is killed
  terminationGracePeriodSeconds: 30
  # -- topologySpread for distributor pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Defaults to allow skew no more then 1 node per AZ
  topologySpreadConstraints: |
    - maxSkew: 1
      topologyKey: failure-domain.beta.kubernetes.io/zone
      whenUnsatisfiable: ScheduleAnyway
      labelSelector:
        matchLabels:
          {{- include "tempo.selectorLabels" (dict "ctx" . "component" "distributor") | nindent 6 }}
  # -- Affinity for distributor pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Hard node and soft zone anti-affinity
  affinity: |
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - labelSelector:
            matchLabels:
              {{- include "tempo.selectorLabels" (dict "ctx" . "component" "distributor") | nindent 10 }}
          topologyKey: kubernetes.io/hostname
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "distributor") | nindent 12 }}
            topologyKey: failure-domain.beta.kubernetes.io/zone
  # -- Node selector for distributor pods
  nodeSelector: {}
  # -- Tolerations for distributor pods
  tolerations: []
  # -- Extra volumes for distributor pods
  extraVolumeMounts: []
  # -- Extra volumes for distributor deployment
  extraVolumes: []
  config:
    # -- Enable to log every received trace id to help debug ingestion
    # -- WARNING: Deprecated. Use log_received_spans instead.
    log_received_traces: null
    # -- Enable to log every received span to help debug ingestion or calculate span error distributions using the logs
    log_received_spans:
      enabled: false
      include_all_attributes: false
      filter_by_status_error: false
    # -- Disables write extension with inactive ingesters
    extend_writes: null
    # -- List of tags that will not be extracted from trace data for search lookups
    search_tags_deny_list: []
  # -- Adds the appProtocol field to the distributor service. This allows distributor to work with istio protocol selection.
  appProtocol:
    # -- Set the optional grpc service protocol. Ex: "grpc", "http2" or "https"
    grpc: null

# Configuration for the compactor
compactor:
  # -- Number of replicas for the compactor
  replicas: 1
  image:
    # -- The Docker registry for the compactor image. Overrides `tempo.image.registry`
    registry: null
    # -- Optional list of imagePullSecrets. Overrides `tempo.image.pullSecrets`
    pullSecrets: []
    # -- Docker image repository for the compactor image. Overrides `tempo.image.repository`
    repository: null
    # -- Docker image tag for the compactor image. Overrides `tempo.image.tag`
    tag: null
  # -- The name of the PriorityClass for compactor pods
  priorityClassName: null
  # -- Labels for compactor pods
  podLabels: {}
  # -- Annotations for compactor pods
  podAnnotations: {}
  # -- Additional CLI args for the compactor
  extraArgs: []
  # -- Environment variables to add to the compactor pods
  extraEnv: []
  # -- Environment variables from secrets or configmaps to add to the compactor pods
  extraEnvFrom: []
  # -- Resource requests and limits for the compactor
  resources: {}
  # -- Grace period to allow the compactor to shutdown before it is killed
  terminationGracePeriodSeconds: 30
  # -- Node selector for compactor pods
  nodeSelector: {}
  # -- Tolerations for compactor pods
  tolerations: []
  # -- Extra volumes for compactor pods
  extraVolumeMounts: []
  # -- Extra volumes for compactor deployment
  extraVolumes: []
  config:
    compaction:
      # -- Duration to keep blocks
      block_retention: 48h
      # Duration to keep blocks that have been compacted elsewhere
      compacted_block_retention: 1h
      # -- Blocks in this time window will be compacted together
      compaction_window: 1h
      # -- Amount of data to buffer from input blocks
      v2_in_buffer_bytes: 5242880
      # -- Flush data to backend when buffer is this large
      v2_out_buffer_bytes: 20971520
      # -- Maximum number of traces in a compacted block. WARNING: Deprecated. Use max_block_bytes instead.
      max_compaction_objects: 6000000
      # -- Maximum size of a compacted block in bytes
      max_block_bytes: 107374182400
      # -- Number of tenants to process in parallel during retention
      retention_concurrency: 10
      # -- Number of traces to buffer in memory during compaction
      v2_prefetch_traces_count: 1000
      # -- The maximum amount of time to spend compacting a single tenant before moving to the next
      max_time_per_tenant: 5m
      # -- The time between compaction cycles
      compaction_cycle: 30s
  service:
    # -- Annotations for compactor service
    annotations: {}
  dnsConfigOverides:
    enabled: false
    dnsConfig:
      options:
        - name: ndots
          value: "3"    # This is required for Azure Kubernetes Service (AKS) https://github.com/grafana/tempo/issues/1462

# Configuration for the querier
querier:
  # -- Number of replicas for the querier
  replicas: 1
  autoscaling:
    # -- Enable autoscaling for the querier
    enabled: false
    # -- Minimum autoscaling replicas for the querier
    minReplicas: 1
    # -- Maximum autoscaling replicas for the querier
    maxReplicas: 3
    # -- Target CPU utilisation percentage for the querier
    targetCPUUtilizationPercentage: 60
    # -- Target memory utilisation percentage for the querier
    targetMemoryUtilizationPercentage:
  image:
    # -- The Docker registry for the querier image. Overrides `tempo.image.registry`
    registry: null
    # -- Optional list of imagePullSecrets. Overrides `tempo.image.pullSecrets`
    pullSecrets: []
    # -- Docker image repository for the querier image. Overrides `tempo.image.repository`
    repository: null
    # -- Docker image tag for the querier image. Overrides `tempo.image.tag`
    tag: null
  # -- The name of the PriorityClass for querier pods
  priorityClassName: null
  # -- Labels for querier pods
  podLabels: {}
  # -- Annotations for querier pods
  podAnnotations: {}
  # -- Additional CLI args for the querier
  extraArgs: []
  # -- Environment variables to add to the querier pods
  extraEnv: []
  # -- Environment variables from secrets or configmaps to add to the querier pods
  extraEnvFrom: []
  # -- Resource requests and limits for the querier
  resources: {}
  # -- Grace period to allow the querier to shutdown before it is killed
  terminationGracePeriodSeconds: 30
  # -- topologySpread for querier pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Defaults to allow skew no more then 1 node per AZ
  topologySpreadConstraints: |
    - maxSkew: 1
      topologyKey: failure-domain.beta.kubernetes.io/zone
      whenUnsatisfiable: ScheduleAnyway
      labelSelector:
        matchLabels:
          {{- include "tempo.selectorLabels" (dict "ctx" . "component" "querier") | nindent 6 }}
  # -- Affinity for querier pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Hard node and soft zone anti-affinity
  affinity: |
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - labelSelector:
            matchLabels:
              {{- include "tempo.selectorLabels" (dict "ctx" . "component" "querier" "memberlist" true) | nindent 10 }}
          topologyKey: kubernetes.io/hostname
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "querier" "memberlist" true) | nindent 12 }}
            topologyKey: failure-domain.beta.kubernetes.io/zone
  # -- Node selector for querier pods
  nodeSelector: {}
  # -- Tolerations for querier pods
  tolerations: []
  # -- Extra volumes for querier pods
  extraVolumeMounts: []
  # -- Extra volumes for querier deployment
  extraVolumes: []
  config:
    frontend_worker:
      # -- grpc client configuration
      grpc_client_config: {}
    trace_by_id:
      # -- Timeout for trace lookup requests
      query_timeout: 10s
    search:
      # -- A list of external endpoints that the querier will use to offload backend search requests
      external_endpoints: []
      # -- Timeout for search requests
      query_timeout: 30s
      # -- If search_external_endpoints is set then the querier will primarily act as a proxy for whatever serverless backend you have configured. This setting allows the operator to have the querier prefer itself for a configurable number of subqueries.
      prefer_self: 10
      # -- If set to a non-zero value a second request will be issued at the provided duration. Recommended to be set to p99 of external search requests to reduce long tail latency.
      external_hedge_requests_at: 8s
      # -- The maximum number of requests to execute when hedging. Requires hedge_requests_at to be set.
      external_hedge_requests_up_to: 2
    # -- This value controls the overall number of simultaneous subqueries that the querier will service at once. It does not distinguish between the types of queries.
    max_concurrent_queries: 20

  service:
    # -- Annotations for querier service
    annotations: {}
  # -- Adds the appProtocol field to the querier service. This allows querier to work with istio protocol selection.
  appProtocol:
    # -- Set the optional grpc service protocol. Ex: "grpc", "http2" or "https"
    grpc: null

# Configuration for the query-frontend
queryFrontend:
  query:
    # -- Required for grafana version <7.5 for compatibility with jaeger-ui. Doesn't work on ARM arch
    enabled: false
    image:
      # -- The Docker registry for the query-frontend image. Overrides `tempo.image.registry`
      registry: null
      # -- Optional list of imagePullSecrets. Overrides `tempo.image.pullSecrets`
      pullSecrets: []
      # -- Docker image repository for the query-frontend image. Overrides `tempo.image.repository`
      repository: grafana/tempo-query
      # -- Docker image tag for the query-frontend image. Overrides `tempo.image.tag`
      tag: null
    # -- Resource requests and limits for the query
    resources: {}
    # -- Additional CLI args for tempo-query pods
    extraArgs: []
    # -- Environment variables to add to the tempo-query pods
    extraEnv: []
    # -- Environment variables from secrets or configmaps to add to the tempo-query pods
    extraEnvFrom: []
    # -- Extra volumes for tempo-query pods
    extraVolumeMounts: []
    # -- Extra volumes for tempo-query deployment
    extraVolumes: []
    config: |
            backend: 127.0.0.1:3100
  # -- Number of replicas for the query-frontend
  replicas: 1
  config:
    # -- Number of times to retry a request sent to a querier
    max_retries: 2
    # -- Number of block queries that are tolerated to error before considering the entire query as failed. Numbers greater than 0 make possible for a read to return partial results
    tolerate_failed_blocks: 0
    search:
      # -- The number of concurrent jobs to execute when searching the backend
      concurrent_jobs: 1000
      # -- The target number of bytes for each job to handle when performing a backend search
      target_bytes_per_job: 104857600
    # -- Trace by ID lookup configuration
    trace_by_id:
      # -- The number of shards to split a trace by id query into.
      query_shards: 50
      # -- If set to a non-zero value, a second request will be issued at the provided duration. Recommended to be set to p99 of search requests to reduce long-tail latency.
      hedge_requests_at: 2s
      # -- The maximum number of requests to execute when hedging. Requires hedge_requests_at to be set. Must be greater than 0.
      hedge_requests_up_to: 2
  autoscaling:
    # -- Enable autoscaling for the query-frontend
    enabled: false
    # -- Minimum autoscaling replicas for the query-frontend
    minReplicas: 1
    # -- Maximum autoscaling replicas for the query-frontend
    maxReplicas: 3
    # -- Target CPU utilisation percentage for the query-frontend
    targetCPUUtilizationPercentage: 60
    # -- Target memory utilisation percentage for the query-frontend
    targetMemoryUtilizationPercentage:
  image:
    # -- The Docker registry for the query-frontend image. Overrides `tempo.image.registry`
    registry: null
    # -- Optional list of imagePullSecrets. Overrides `tempo.image.pullSecrets`
    pullSecrets: []
    # -- Docker image repository for the query-frontend image. Overrides `tempo.image.repository`
    repository: null
    # -- Docker image tag for the query-frontend image. Overrides `tempo.image.tag`
    tag: null
  service:
    # -- Port of the query-frontend service
    port: 16686
    # -- Annotations for queryFrontend service
    annotations: {}
    # -- Type of service for the queryFrontend
    type: ClusterIP
    # -- If type is LoadBalancer you can assign the IP to the LoadBalancer
    loadBalancerIP: ""
    # -- If type is LoadBalancer limit incoming traffic from IPs.
    loadBalancerSourceRanges: []
  serviceDiscovery:
    # -- Annotations for queryFrontendDiscovery service
    annotations: {}
  ingress:
    # -- Specifies whether an ingress for the Jaeger should be created
    enabled: false
    # -- Ingress Class Name. MAY be required for Kubernetes versions >= 1.18
    # ingressClassName: nginx
    # -- Annotations for the Jaeger ingress
    annotations: {}
    # -- Hosts configuration for the Jaeger ingress
    hosts:
      - host: query.tempo.example.com
        paths:
          - path: /
            # -- pathType (e.g. ImplementationSpecific, Prefix, .. etc.) might also be required by some Ingress Controllers
            # pathType: Prefix
    # -- TLS configuration for the Jaeger ingress
    tls:
      - secretName: tempo-query-tls
        hosts:
          - query.tempo.example.com
  # -- The name of the PriorityClass for query-frontend pods
  priorityClassName: null
  # -- Labels for queryFrontend pods
  podLabels: {}
  # -- Annotations for query-frontend pods
  podAnnotations: {}
  # -- Additional CLI args for the query-frontend
  extraArgs: []
  # -- Environment variables to add to the query-frontend pods
  extraEnv: []
  # -- Environment variables from secrets or configmaps to add to the query-frontend pods
  extraEnvFrom: []
  # -- Resource requests and limits for the query-frontend
  resources: {}
  # -- Grace period to allow the query-frontend to shutdown before it is killed
  terminationGracePeriodSeconds: 30
  # -- topologySpread for query-frontend pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Defaults to allow skew no more then 1 node per AZ
  topologySpreadConstraints: |
    - maxSkew: 1
      topologyKey: failure-domain.beta.kubernetes.io/zone
      whenUnsatisfiable: ScheduleAnyway
      labelSelector:
        matchLabels:
          {{- include "tempo.selectorLabels" (dict "ctx" . "component" "query-frontend") | nindent 6 }}
  # -- Affinity for query-frontend pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Hard node and soft zone anti-affinity
  affinity: |
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - labelSelector:
            matchLabels:
              {{- include "tempo.selectorLabels" (dict "ctx" . "component" "query-frontend") | nindent 10 }}
          topologyKey: kubernetes.io/hostname
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "query-frontend") | nindent 12 }}
            topologyKey: failure-domain.beta.kubernetes.io/zone
  # -- Node selector for query-frontend pods
  nodeSelector: {}
  # -- Tolerations for query-frontend pods
  tolerations: []
  # -- Extra volumes for query-frontend pods
  extraVolumeMounts: []
  # -- Extra volumes for query-frontend deployment
  extraVolumes: []
  # -- Adds the appProtocol field to the queriyFrontend service. This allows queriyFrontend to work with istio protocol selection.
  appProtocol:
    # -- Set the optional grpc service protocol. Ex: "grpc", "http2" or "https"
    grpc: null

multitenancyEnabled: false

traces:
  jaeger:
    grpc:
      # -- Enable Tempo to ingest Jaeger GRPC traces
      enabled: false
      # -- Jaeger GRPC receiver config
      receiverConfig: {}
    thriftBinary:
      # -- Enable Tempo to ingest Jaeger Thrift Binary traces
      enabled: false
      # -- Jaeger Thrift Binary receiver config
      receiverConfig: {}
    thriftCompact:
      # -- Enable Tempo to ingest Jaeger Thrift Compact traces
      enabled: false
      # -- Jaeger Thrift Compact receiver config
      receiverConfig: {}
    thriftHttp:
      # -- Enable Tempo to ingest Jaeger Thrift HTTP traces
      enabled: false
      # -- Jaeger Thrift HTTP receiver config
      receiverConfig: {}
  zipkin:
    # -- Enable Tempo to ingest Zipkin traces
    enabled: false
    # -- Zipkin receiver config
    receiverConfig: {}
  otlp:
    http:
      # -- Enable Tempo to ingest Open Telemetry HTTP traces
      enabled: true
      # -- HTTP receiver advanced config
      receiverConfig: {}
    grpc:
      # -- Enable Tempo to ingest Open Telemetry GRPC traces
      enabled: true
      # -- GRPC receiver advanced config
      receiverConfig: {}
  opencensus:
    # -- Enable Tempo to ingest Open Census traces
    enabled: false
    # -- Open Census receiver config
    receiverConfig: {}
  # -- Enable Tempo to ingest traces from Kafka. Reference: https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/receiver/kafkareceiver
  kafka: {}

# -- Config file contents for Tempo distributed. Passed through the `tpl` function to allow templating

# @default -- See values.yaml
config: |
  multitenancy_enabled: {{ .Values.multitenancyEnabled }}

  usage_report:
    reporting_enabled: {{ .Values.reportingEnabled }}

  {{- if .Values.enterprise.enabled }}
  license:
    path: "/license/license.jwt"

  admin_api:
    leader_election:
      enabled: true
      ring:
        kvstore:
          store: "memberlist"

  auth:
    type: enterprise

  http_api_prefix: {{get .Values.tempo.structuredConfig "http_api_prefix"}}

  admin_client:
    storage:
      backend: {{.Values.storage.admin.backend}}
      {{- if eq .Values.storage.admin.backend "s3"}}
      s3:
        {{- toYaml .Values.storage.admin.s3 | nindent 6}}
      {{- end}}
      {{- if eq .Values.storage.admin.backend "gcs"}}
      gcs:
        {{- toYaml .Values.storage.admin.gcs | nindent 6}}
      {{- end}}
      {{- if eq .Values.storage.admin.backend "azure"}}
      azure:
        {{- toYaml .Values.storage.admin.azure | nindent 6}}
      {{- end}}
      {{- if eq .Values.storage.admin.backend "swift"}}
      swift:
        {{- toYaml .Values.storage.admin.swift | nindent 6}}
      {{- end}}
      {{- if eq .Values.storage.admin.backend "filesystem"}}
      filesystem:
        {{- toYaml .Values.storage.admin.filesystem | nindent 6}}
      {{- end}}
  {{- end }}

  {{- if and .Values.enterprise.enabled .Values.enterpriseGateway.useDefaultProxyURLs }}
  gateway:
    proxy:
      admin_api:
        url: http://{{ template "tempo.fullname" . }}-admin-api.{{ .Release.Namespace }}.svc:{{ include "tempo.serverHttpListenPort" . }}
      compactor:
        url: http://{{ template "tempo.fullname" . }}-compactor.{{ .Release.Namespace }}.svc:{{ include "tempo.serverHttpListenPort" . }}
      default:
        url: http://{{ template "tempo.fullname" . }}-admin-api.{{ .Release.Namespace }}.svc:{{ include "tempo.serverHttpListenPort" . }}
      distributor:
        url: http://{{ template "tempo.fullname" . }}-distributor.{{ .Release.Namespace }}.svc:{{ include "tempo.serverHttpListenPort" . }}
      distributor_ingest:
        url: h2c://{{ template "tempo.fullname" . }}-distributor.{{ .Release.Namespace }}.svc:4317
      ingester:
        url: http://{{ template "tempo.fullname" . }}-ingester.{{ .Release.Namespace }}.svc:{{ include "tempo.serverHttpListenPort" . }}
      querier:
        url: http://{{ template "tempo.fullname" . }}-querier.{{ .Release.Namespace }}.svc:{{ include "tempo.serverHttpListenPort" . }}
      query_frontend:
        url: http://{{ template "tempo.fullname" . }}-query-frontend.{{ .Release.Namespace }}.svc:{{ include "tempo.serverHttpListenPort" . }}{{get .Values.tempo.structuredConfig "http_api_prefix"}}
  {{- end }}

  compactor:
    compaction:
      block_retention: {{ .Values.compactor.config.compaction.block_retention }}
      compacted_block_retention: {{ .Values.compactor.config.compaction.compacted_block_retention }}
      compaction_window: {{ .Values.compactor.config.compaction.compaction_window }}
      v2_in_buffer_bytes: {{ .Values.compactor.config.compaction.v2_in_buffer_bytes }}
      v2_out_buffer_bytes: {{ .Values.compactor.config.compaction.v2_out_buffer_bytes }}
      max_compaction_objects: {{ .Values.compactor.config.compaction.max_compaction_objects }}
      max_block_bytes: {{ .Values.compactor.config.compaction.max_block_bytes }}
      retention_concurrency: {{ .Values.compactor.config.compaction.retention_concurrency }}
      v2_prefetch_traces_count: {{ .Values.compactor.config.compaction.v2_prefetch_traces_count }}
      max_time_per_tenant: {{ .Values.compactor.config.compaction.max_time_per_tenant }}
      compaction_cycle: {{ .Values.compactor.config.compaction.compaction_cycle }}
    ring:
      kvstore:
        store: memberlist
  {{- if .Values.metricsGenerator.enabled }}
  metrics_generator:
    ring:
      kvstore:
        store: memberlist
    processor:
      {{- toYaml .Values.metricsGenerator.config.processor | nindent 6 }}
    storage:
      {{- toYaml .Values.metricsGenerator.config.storage | nindent 6 }}
    registry:
      {{- toYaml .Values.metricsGenerator.config.registry | nindent 6 }}
  {{- end }}
  distributor:
    ring:
      kvstore:
        store: memberlist
    receivers:
      {{- if  or (.Values.traces.jaeger.thriftCompact.enabled) (.Values.traces.jaeger.thriftBinary.enabled) (.Values.traces.jaeger.thriftHttp.enabled) (.Values.traces.jaeger.grpc.enabled) }}
      jaeger:
        protocols:
          {{- if .Values.traces.jaeger.thriftCompact.enabled }}
          thrift_compact:
            {{- $mergedJaegerThriftCompactConfig := mustMergeOverwrite (dict "endpoint" "0.0.0.0:6831") .Values.traces.jaeger.thriftCompact.receiverConfig }}
            {{- toYaml $mergedJaegerThriftCompactConfig | nindent 10 }}
          {{- end }}
          {{- if .Values.traces.jaeger.thriftBinary.enabled }}
          thrift_binary:
            {{- $mergedJaegerThriftBinaryConfig := mustMergeOverwrite (dict "endpoint" "0.0.0.0:6832") .Values.traces.jaeger.thriftBinary.receiverConfig }}
            {{- toYaml $mergedJaegerThriftBinaryConfig | nindent 10 }}
          {{- end }}
          {{- if .Values.traces.jaeger.thriftHttp.enabled }}
          thrift_http:
            {{- $mergedJaegerThriftHttpConfig := mustMergeOverwrite (dict "endpoint" "0.0.0.0:14268") .Values.traces.jaeger.thriftHttp.receiverConfig }}
            {{- toYaml $mergedJaegerThriftHttpConfig | nindent 10 }}
          {{- end }}
          {{- if .Values.traces.jaeger.grpc.enabled }}
          grpc:
            {{- $mergedJaegerGrpcConfig := mustMergeOverwrite (dict "endpoint" "0.0.0.0:14250") .Values.traces.jaeger.grpc.receiverConfig }}
            {{- toYaml $mergedJaegerGrpcConfig | nindent 10 }}
          {{- end }}
      {{- end }}
      {{- if .Values.traces.zipkin.enabled }}
      zipkin:
        {{- $mergedZipkinReceiverConfig := mustMergeOverwrite (dict "endpoint" "0.0.0.0:9411") .Values.traces.zipkin.receiverConfig }}
        {{- toYaml $mergedZipkinReceiverConfig | nindent 6 }}
      {{- end }}
      {{- if or (.Values.traces.otlp.http.enabled) (.Values.traces.otlp.grpc.enabled) }}
      otlp:
        protocols:
          {{- if .Values.traces.otlp.http.enabled }}
          http:
            {{- $mergedOtlpHttpReceiverConfig := mustMergeOverwrite (dict "endpoint" "0.0.0.0:4318") .Values.traces.otlp.http.receiverConfig }}
            {{- toYaml $mergedOtlpHttpReceiverConfig | nindent 10 }}
          {{- end }}
          {{- if .Values.traces.otlp.grpc.enabled }}
          grpc:
            {{- $mergedOtlpGrpcReceiverConfig := mustMergeOverwrite (dict "endpoint" "0.0.0.0:4317") .Values.traces.otlp.grpc.receiverConfig }}
            {{- toYaml $mergedOtlpGrpcReceiverConfig | nindent 10 }}
          {{- end }}
      {{- end }}
      {{- if .Values.traces.opencensus.enabled }}
      opencensus:
        {{- $mergedOpencensusReceiverConfig := mustMergeOverwrite (dict "endpoint" "0.0.0.0:55678") .Values.traces.opencensus.receiverConfig }}
        {{- toYaml $mergedOpencensusReceiverConfig | nindent 6 }}
      {{- end }}
      {{- if .Values.traces.kafka }}
      kafka:
        {{- toYaml .Values.traces.kafka | nindent 6 }}
      {{- end }}
    {{- if or .Values.distributor.config.log_received_traces .Values.distributor.config.log_received_spans.enabled }}
    log_received_spans:
      enabled: {{ or .Values.distributor.config.log_received_traces .Values.distributor.config.log_received_spans.enabled }}
      include_all_attributes: {{ .Values.distributor.config.log_received_spans.include_all_attributes }}
      filter_by_status_error: {{ .Values.distributor.config.log_received_spans.filter_by_status_error }}
    {{- end }}
    {{- if .Values.distributor.config.extend_writes }}
    extend_writes: {{ .Values.distributor.config.extend_writes }}
    {{- end }}
    {{- if .Values.distributor.config.search_tags_deny_list }}
    search_tags_deny_list:
      {{- with .Values.distributor.config.search_tags_deny_list }}
      {{- toYaml . | nindent 4 }}
      {{- end }}
    {{- end }}
  querier:
    frontend_worker:
      frontend_address: {{ include "tempo.resourceName" (dict "ctx" . "component" "query-frontend-discovery") }}:9095
      {{- if .Values.querier.config.frontend_worker.grpc_client_config }}
      grpc_client_config:
        {{- toYaml .Values.querier.config.frontend_worker.grpc_client_config | nindent 6 }}
      {{- end }}
    trace_by_id:
      query_timeout: {{ .Values.querier.config.trace_by_id.query_timeout }}
    search:
      external_endpoints: {{- toYaml .Values.querier.config.search.external_endpoints | nindent 6 }}
      query_timeout: {{ .Values.querier.config.search.query_timeout }}
      prefer_self: {{ .Values.querier.config.search.prefer_self }}
      external_hedge_requests_at: {{ .Values.querier.config.search.external_hedge_requests_at }}
      external_hedge_requests_up_to: {{ .Values.querier.config.search.external_hedge_requests_up_to }}
    max_concurrent_queries: {{ .Values.querier.config.max_concurrent_queries }}
  query_frontend:
    max_retries: {{ .Values.queryFrontend.config.max_retries }}
    tolerate_failed_blocks: {{ .Values.queryFrontend.config.tolerate_failed_blocks }}
    search:
      target_bytes_per_job: {{ .Values.queryFrontend.config.search.target_bytes_per_job }}
      concurrent_jobs: {{ .Values.queryFrontend.config.search.concurrent_jobs }}
    trace_by_id:
      query_shards: {{ .Values.queryFrontend.config.trace_by_id.query_shards }}
      hedge_requests_at: {{ .Values.queryFrontend.config.trace_by_id.hedge_requests_at }}
      hedge_requests_up_to: {{ .Values.queryFrontend.config.trace_by_id.hedge_requests_up_to }}

  ingester:
    lifecycler:
      ring:
        replication_factor: {{ .Values.ingester.config.replication_factor }}
        kvstore:
          store: memberlist
      tokens_file_path: /var/tempo/tokens.json
    {{- if .Values.ingester.config.trace_idle_period }}
    trace_idle_period: {{ .Values.ingester.config.trace_idle_period }}
    {{- end }}
    {{- if .Values.ingester.config.flush_check_period }}
    flush_check_period: {{ .Values.ingester.config.flush_check_period }}
    {{- end }}
    {{- if .Values.ingester.config.max_block_bytes }}
    max_block_bytes: {{ .Values.ingester.config.max_block_bytes }}
    {{- end }}
    {{- if .Values.ingester.config.max_block_duration }}
    max_block_duration: {{ .Values.ingester.config.max_block_duration }}
    {{- end }}
    {{- if .Values.ingester.config.complete_block_timeout }}
    complete_block_timeout: {{ .Values.ingester.config.complete_block_timeout }}
    {{- end }}
  memberlist:
    abort_if_cluster_join_fails: false
    join_members:
      - {{ include "tempo.fullname" . }}-gossip-ring
  overrides:
    {{- toYaml .Values.global_overrides | nindent 2 }}
    {{- if .Values.metricsGenerator.enabled }}
    metrics_generator_processors:
    {{- range .Values.global_overrides.metrics_generator_processors }}
    - {{ . }}
    {{- end }}
    {{- end }}
  server:
    http_listen_port: {{ .Values.server.httpListenPort }}
    log_level: {{ .Values.server.logLevel }}
    log_format: {{ .Values.server.logFormat }}
    grpc_server_max_recv_msg_size: {{ .Values.server.grpc_server_max_recv_msg_size }}
    grpc_server_max_send_msg_size: {{ .Values.server.grpc_server_max_send_msg_size }}
    http_server_read_timeout: {{ .Values.server.http_server_read_timeout }}
    http_server_write_timeout: {{ .Values.server.http_server_write_timeout }}
  storage:
    trace:
      block:
        version: {{.Values.storage.trace.block.version}}
      backend: {{.Values.storage.trace.backend}}
      {{- if eq .Values.storage.trace.backend "s3"}}
      s3:
        {{- toYaml .Values.storage.trace.s3 | nindent 6}}
      {{- end }}
      {{- if eq .Values.storage.trace.backend "gcs"}}
      gcs:
        {{- toYaml .Values.storage.trace.gcs | nindent 6}}
      {{- end }}
      {{- if eq .Values.storage.trace.backend "azure"}}
      azure:
        {{- toYaml .Values.storage.trace.azure | nindent 6}}
      {{- end }}
      blocklist_poll: 5m
      local:
        path: /var/tempo/traces
      wal:
        path: /var/tempo/wal
      {{- if .Values.memcached.enabled }}
      cache: memcached
      memcached:
        consistent_hash: true
        host: {{ include "tempo.fullname" . }}-memcached
        service: memcached-client
        timeout: 500ms
      {{- end }}

# Set Tempo server configuration
# Refers to https://grafana.com/docs/tempo/latest/configuration/#server
server:
  # --  HTTP server listen host
  httpListenPort: 3100
  # -- Log level. Can be set to trace, debug, info (default), warn, error, fatal, panic
  logLevel: info
  # -- Log format. Can be set to logfmt (default) or json.
  logFormat: logfmt
  # -- Max gRPC message size that can be received
  grpc_server_max_recv_msg_size: 4194304
  # -- Max gRPC message size that can be sent
  grpc_server_max_send_msg_size: 4194304
  # -- Read timeout for HTTP server
  http_server_read_timeout: 30s
  # -- Write timeout for HTTP server
  http_server_write_timeout: 30s

# To configure a different storage backend instead of local storage:
# storage:
#   trace:
#     backend: azure
#     azure:
#       container_name:
#       storage_account_name:
#       storage_account_key:
storage:
  trace:
    # Settings for the block storage backend and buckets.
    block:
      # -- The supported block versions are v2 and vParquet, as specified in https://grafana.com/docs/tempo/latest/configuration/parquet/
      version: vParquet
    backend: s3
   # store traces in s3
    s3:
      bucket: tempo-traces
      endpoint: tempo-minio:9000
      access_key: ISaFNtNGZyUHYjeuhgNG
      secret_key: rmAU9vVxhlpfa53a9UT9QPKpp05v5zA3e68F8Wpt
      insecure: true
  admin:

    # -- The supported storage backends are gcs, s3 and azure, as specified in https://grafana.com/docs/enterprise-traces/latest/config/reference/#admin_client_config
    backend: filesystem

# Global overrides
global_overrides:
  per_tenant_override_config: /conf/overrides.yaml
  max_bytes_per_trace: 10000000
  metrics_generator_processors:
    - service-graphs
    - span-metrics

# Per tenants overrides
overrides: |
    overrides: {}

# memcached is for all of the Tempo pieces to coordinate with each other.
# you can use your self memcacherd by set enable: false and host + service
memcached:
  # -- Specified whether the memcached cachce should be enabled
  enabled: true
  image:
    # -- The Docker registry for the Memcached image. Overrides `global.image.registry`
    registry: null
    # -- Optional list of imagePullSecrets. Overrides `global.image.pullSecrets`
    pullSecrets: []
    # -- Memcached Docker image repository
    repository: memcached
    # -- Memcached Docker image tag
    tag: 1.5.17-alpine
    # -- Memcached Docker image pull policy
    pullPolicy: IfNotPresent
  host: memcached
  # Number of replicas for memchached
  replicas: 1
  # -- Additional CLI args for memcached
  extraArgs: []
  # -- Environment variables to add to memcached pods
  extraEnv: []
  # -- Environment variables from secrets or configmaps to add to memcached pods
  extraEnvFrom: []
  # -- Labels for memcached pods
  podLabels: {}
  # -- Annotations for memcached pods
  podAnnotations: {}
  # -- Resource requests and limits for memcached
  resources: {}
  # -- topologySpread for memcached pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Defaults to allow skew no more then 1 node per AZ
  topologySpreadConstraints: |
    - maxSkew: 1
      topologyKey: failure-domain.beta.kubernetes.io/zone
      whenUnsatisfiable: ScheduleAnyway
      labelSelector:
        matchLabels:
          {{- include "tempo.selectorLabels" (dict "ctx" . "component" "memcached") | nindent 6 }}
  # -- Affinity for memcached pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Hard node and soft zone anti-affinity
  affinity: |
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - labelSelector:
            matchLabels:
              {{- include "tempo.selectorLabels" (dict "ctx" . "component" "memcached") | nindent 10 }}
          topologyKey: kubernetes.io/hostname
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "memcached") | nindent 12 }}
            topologyKey: failure-domain.beta.kubernetes.io/zone
  service:
    # -- Annotations for memcached service
    annotations: {}

memcachedExporter:
  # -- Specifies whether the Memcached Exporter should be enabled
  enabled: false
  image:
    # -- The Docker registry for the Memcached Exporter image. Overrides `global.image.registry`
    registry: null
    # -- Optional list of imagePullSecrets. Overrides `global.image.pullSecrets`
    pullSecrets: []
    # -- Memcached Exporter Docker image repository
    repository: prom/memcached-exporter
    # -- Memcached Exporter Docker image tag
    tag: v0.8.0
    # -- Memcached Exporter Docker image pull policy
    pullPolicy: IfNotPresent
    # -- Memcached Exporter resource requests and limits
  resources: {}

metaMonitoring:
  # ServiceMonitor configuration
  serviceMonitor:
    # -- If enabled, ServiceMonitor resources for Prometheus Operator are created
    enabled: false
    # -- Alternative namespace for ServiceMonitor resources
    namespace: null
    # -- Namespace selector for ServiceMonitor resources
    namespaceSelector: {}
    # -- ServiceMonitor annotations
    annotations: {}
    # -- Additional ServiceMonitor labels
    labels: {}
    # -- ServiceMonitor scrape interval
    interval: null
    # -- ServiceMonitor scrape timeout in Go duration format (e.g. 15s)
    scrapeTimeout: null
    # -- ServiceMonitor relabel configs to apply to samples before scraping
    # https://github.com/prometheus-operator/prometheus-operator/blob/master/Documentation/api.md#relabelconfig
    relabelings: []
    # -- ServiceMonitor metric relabel configs to apply to samples before ingestion
    # https://github.com/prometheus-operator/prometheus-operator/blob/main/Documentation/api.md#endpoint
    metricRelabelings: []
    # -- ServiceMonitor will use http by default, but you can pick https as well
    scheme: http
    # -- ServiceMonitor will use these tlsConfig settings to make the health check requests
    tlsConfig: null

  # metaMonitoringAgent configures the built in Grafana Agent that can scrape metrics and logs and send them to a local or remote destination
  grafanaAgent:
    # -- Controls whether to create PodLogs, MetricsInstance, LogsInstance, and GrafanaAgent CRs to scrape the
    # ServiceMonitors of the chart and ship metrics and logs to the remote endpoints below.
    # Note that you need to configure serviceMonitor in order to have some metrics available.
    enabled: false

    # -- Controls whether to install the Grafana Agent Operator and its CRDs.
    # Note that helm will not install CRDs if this flag is enabled during an upgrade.
    # In that case install the CRDs manually from https://github.com/grafana/agent/tree/main/production/operator/crds
    installOperator: false

    logs:
      # -- Default destination for logs. The config here is translated to Promtail client
      # configuration to write logs to this Loki-compatible remote. Optional.
      remote:
        # -- Full URL for Loki push endpoint. Usually ends in /loki/api/v1/push
        url: ''

        auth:
          # -- Used to set X-Scope-OrgID header on requests. Usually not used in combination with username and password.
          tenantId: ''

          # -- Basic authentication username. Optional.
          username: ''

          # -- The value under key passwordSecretKey in this secret will be used as the basic authentication password. Required only if passwordSecretKey is set.
          passwordSecretName: ''
          # -- The value under this key in passwordSecretName will be used as the basic authentication password. Required only if passwordSecretName is set.
          passwordSecretKey: ''

      # -- Client configurations for the LogsInstance that will scrape Mimir pods. Follows the format of .remote.
      additionalClientConfigs: []

    metrics:
      # -- Default destination for metrics. The config here is translated to remote_write
      # configuration to push metrics to this Prometheus-compatible remote. Optional.
      # Note that you need to configure serviceMonitor in order to have some metrics available.
      remote:
        # -- Full URL for Prometheus remote-write. Usually ends in /push
        url: ''

        # -- Used to add HTTP headers to remote-write requests.
        headers: {}
        auth:
          # -- Basic authentication username. Optional.
          username: ''

          # -- The value under key passwordSecretKey in this secret will be used as the basic authentication password. Required only if passwordSecretKey is set.
          passwordSecretName: ''
          # -- The value under this key in passwordSecretName will be used as the basic authentication password. Required only if passwordSecretName is set.
          passwordSecretKey: ''

      # -- Additional remote-write for the MetricsInstance that will scrape Mimir pods. Follows the format of .remote.
      additionalRemoteWriteConfigs: []

      scrapeK8s:
        # -- When grafanaAgent.enabled and serviceMonitor.enabled, controls whether to create ServiceMonitors CRs
        # for cadvisor, kubelet, and kube-state-metrics. The scraped metrics are reduced to those pertaining to
        # Mimir pods only.
        enabled: true

        # -- Controls service discovery of kube-state-metrics.
        kubeStateMetrics:
          namespace: kube-system
          labelSelectors:
            app.kubernetes.io/name: kube-state-metrics

    # -- Sets the namespace of the resources. Leave empty or unset to use the same namespace as the Helm release.
    namespace: ''

    # -- Labels to add to all monitoring.grafana.com custom resources.
    # Does not affect the ServiceMonitors for kubernetes metrics; use serviceMonitor.labels for that.
    labels: {}

    # -- Annotations to add to all monitoring.grafana.com custom resources.
    # Does not affect the ServiceMonitors for kubernetes metrics; use serviceMonitor.annotations for that.
    annotations: {}

# Rules for the Prometheus Operator
prometheusRule:
  # -- If enabled, a PrometheusRule resource for Prometheus Operator is created
  enabled: false
  # -- Alternative namespace for the PrometheusRule resource
  namespace: null
  # -- PrometheusRule annotations
  annotations: {}
  # -- Additional PrometheusRule labels
  labels: {}
  # -- Contents of Prometheus rules file
  groups: []
  # - name: loki-rules
  #   rules:
  #     - record: job:loki_request_duration_seconds_bucket:sum_rate
  #       expr: sum(rate(loki_request_duration_seconds_bucket[1m])) by (le, job)
  #     - record: job_route:loki_request_duration_seconds_bucket:sum_rate
  #       expr: sum(rate(loki_request_duration_seconds_bucket[1m])) by (le, job, route)
  #     - record: node_namespace_pod_container:container_cpu_usage_seconds_total:sum_rate
  #       expr: sum(rate(container_cpu_usage_seconds_total[1m])) by (node, namespace, pod, container)

minio:
  enabled: true
  mode: standalone
  rootUser: grafana-tempo
  rootPassword: supersecret
  buckets:
    # Default Tempo storage bucket.
    - name: tempo-traces
      policy: none
      purge: false
    # Bucket for traces storage if enterprise.enabled is true - requires license.
    - name: enterprise-traces
      policy: none
      purge: false
    # Admin client bucket if enterprise.enabled is true - requires license.
    - name: enterprise-traces-admin
      policy: none
      purge: false
  persistence:
    size: 200Gi
    storageClass: alicloud-disk-essd
  resources:
    requests:
      cpu: 100m
      memory: 128Mi
  # Changed the mc config path to '/tmp' from '/etc' as '/etc' is only writable by root and OpenShift will not permit this.
  configPathmc: '/tmp/minio/mc/'

# Configuration for the gateway
gateway:
  # -- Specifies whether the gateway should be enabled
  enabled: false
  # -- Number of replicas for the gateway
  replicas: 1
  autoscaling:
    # -- Enable autoscaling for the gateway
    enabled: false
    # -- Minimum autoscaling replicas for the gateway
    minReplicas: 1
    # -- Maximum autoscaling replicas for the gateway
    maxReplicas: 3
    # -- Target CPU utilisation percentage for the gateway
    targetCPUUtilizationPercentage: 60
    # -- Target memory utilisation percentage for the gateway
    targetMemoryUtilizationPercentage:
  # -- Enable logging of 2xx and 3xx HTTP requests
  verboseLogging: true
  image:
    # -- The Docker registry for the gateway image. Overrides `global.image.registry`
    registry: null
    # -- Optional list of imagePullSecrets. Overrides `global.image.pullSecrets`
    pullSecrets: []
    # -- The gateway image repository
    repository: nginxinc/nginx-unprivileged
    # -- The gateway image tag
    tag: 1.19-alpine
    # -- The gateway image pull policy
    pullPolicy: IfNotPresent
  # -- The name of the PriorityClass for gateway pods
  priorityClassName: null
  # -- Labels for gateway pods
  podLabels: {}
  # -- Annotations for gateway pods
  podAnnotations: {}
  # -- Additional CLI args for the gateway
  extraArgs: []
  # -- Environment variables to add to the gateway pods
  extraEnv: []
  # -- Environment variables from secrets or configmaps to add to the gateway pods
  extraEnvFrom: []
  # -- Volumes to add to the gateway pods
  extraVolumes: []
  # -- Volume mounts to add to the gateway pods
  extraVolumeMounts: []
  # -- Resource requests and limits for the gateway
  resources: {}
  # -- Grace period to allow the gateway to shutdown before it is killed
  terminationGracePeriodSeconds: 30
  # -- topologySpread for gateway pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Defaults to allow skew no more then 1 node per AZ
  topologySpreadConstraints: |
    - maxSkew: 1
      topologyKey: failure-domain.beta.kubernetes.io/zone
      whenUnsatisfiable: ScheduleAnyway
      labelSelector:
        matchLabels:
          {{- include "tempo.selectorLabels" (dict "ctx" . "component" "gateway") | nindent 6 }}
  # -- Affinity for gateway pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Hard node and soft zone anti-affinity
  affinity: |
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - labelSelector:
            matchLabels:
              {{- include "tempo.selectorLabels" (dict "ctx" . "component" "gateway") | nindent 10 }}
          topologyKey: kubernetes.io/hostname
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "gateway") | nindent 12 }}
            topologyKey: failure-domain.beta.kubernetes.io/zone
  # -- Node selector for gateway pods
  nodeSelector: {}
  # -- Tolerations for gateway pods
  tolerations: []
  # Gateway service configuration
  service:
    # -- Port of the gateway service
    port: 80
    # -- Type of the gateway service
    type: ClusterIP
    # -- ClusterIP of the gateway service
    clusterIP: null
    # -- Node port if service type is NodePort
    nodePort: null
    # -- Load balancer IPO address if service type is LoadBalancer
    loadBalancerIP: null
    # -- Annotations for the gateway service
    annotations: {}
    # -- Labels for gateway service
    labels: {}
    # -- Additional ports to be opneed on gateway service (e.g. for RPC connections)
    additionalPorts: {}
  # Gateway ingress configuration
  ingress:
    # -- Specifies whether an ingress for the gateway should be created
    enabled: false
    # -- Ingress Class Name. MAY be required for Kubernetes versions >= 1.18
    # ingressClassName: nginx
    # -- Annotations for the gateway ingress
    annotations: {}
    # -- Hosts configuration for the gateway ingress
    hosts:
      - host: gateway.tempo.example.com
        paths:
          - path: /
            # -- pathType (e.g. ImplementationSpecific, Prefix, .. etc.) might also be required by some Ingress Controllers
            # pathType: Prefix
    # -- TLS configuration for the gateway ingress
    tls:
      - secretName: tempo-gateway-tls
        hosts:
          - gateway.tempo.example.com
  # Basic auth configuration
  basicAuth:
    # -- Enables basic authentication for the gateway
    enabled: false
    # -- The basic auth username for the gateway
    username: null
    # -- The basic auth password for the gateway
    password: null
    # -- Uses the specified username and password to compute a htpasswd using Sprig's `htpasswd` function.
    # The value is templated using `tpl`. Override this to use a custom htpasswd, e.g. in case the default causes
    # high CPU load.
    htpasswd: >-
            {{ htpasswd (required "'gateway.basicAuth.username' is required" .Values.gateway.basicAuth.username) (required "'gateway.basicAuth.password' is required" .Values.gateway.basicAuth.password) }}
    # -- Existing basic auth secret to use. Must contain '.htpasswd'
    existingSecret: null
  # Configures the readiness probe for the gateway
  readinessProbe:
    httpGet:
      path: /
      port: http-metrics
    initialDelaySeconds: 15
    timeoutSeconds: 1
  nginxConfig:
    # -- NGINX log format
    logFormat: |-
      main '$remote_addr - $remote_user [$time_local]  $status '
              '"$request" $body_bytes_sent "$http_referer" '
              '"$http_user_agent" "$http_x_forwarded_for"';
    # -- Allows appending custom configuration to the server block
    serverSnippet: ''
    # -- Allows appending custom configuration to the http block
    httpSnippet: ''
    # -- Allows overriding the DNS resolver address nginx will use
    resolver: ''
    # -- Config file contents for Nginx. Passed through the `tpl` function to allow templating
    # @default -- See values.yaml
    file: |
      worker_processes  5;  ## Default: 1
      error_log  /dev/stderr;
      pid        /tmp/nginx.pid;
      worker_rlimit_nofile 8192;

      events {
        worker_connections  4096;  ## Default: 1024
      }

      http {
        client_body_temp_path /tmp/client_temp;
        proxy_temp_path       /tmp/proxy_temp_path;
        fastcgi_temp_path     /tmp/fastcgi_temp;
        uwsgi_temp_path       /tmp/uwsgi_temp;
        scgi_temp_path        /tmp/scgi_temp;

        proxy_http_version    1.1;

        default_type application/octet-stream;
        log_format   {{ .Values.gateway.nginxConfig.logFormat }}

        {{- if .Values.gateway.verboseLogging }}
        access_log   /dev/stderr  main;
        {{- else }}

        map $status $loggable {
          ~^[23]  0;
          default 1;
        }
        access_log   /dev/stderr  main  if=$loggable;
        {{- end }}

        sendfile     on;
        tcp_nopush   on;
        {{- if .Values.gateway.nginxConfig.resolver }}
        resolver {{ .Values.gateway.nginxConfig.resolver }};
        {{- else }}
        resolver {{ .Values.global.dnsService }}.{{ .Values.global.dnsNamespace }}.svc.{{ .Values.global.clusterDomain }};
        {{- end }}

        {{- with .Values.gateway.nginxConfig.httpSnippet }}
        {{ . | nindent 2 }}
        {{- end }}

        server {
          listen             8080;

          {{- if .Values.gateway.basicAuth.enabled }}
          auth_basic           "Tempo";
          auth_basic_user_file /etc/nginx/secrets/.htpasswd;
          {{- end }}

          location = / {
            return 200 'OK';
            auth_basic off;
          }

          location = /jaeger/api/traces {
            proxy_pass       http://{{ include "tempo.resourceName" (dict "ctx" . "component" "distributor") }}.{{ .Release.Namespace }}.svc.{{ .Values.global.clusterDomain }}:14268/api/traces;
          }

          location = /zipkin/spans {
            proxy_pass       http://{{ include "tempo.resourceName" (dict "ctx" . "component" "distributor") }}.{{ .Release.Namespace }}.svc.{{ .Values.global.clusterDomain }}:9411/spans;
          }

          location = /otlp/v1/traces {
            proxy_pass       http://{{ include "tempo.resourceName" (dict "ctx" . "component" "distributor") }}.{{ .Release.Namespace }}.svc.{{ .Values.global.clusterDomain }}:4318/v1/traces;
          }

          location ^~ /api {
            proxy_pass       http://{{ include "tempo.resourceName" (dict "ctx" . "component" "query-frontend") }}.{{ .Release.Namespace }}.svc.{{ .Values.global.clusterDomain }}:3100$request_uri;
          }

          location = /flush {
            proxy_pass       http://{{ include "tempo.resourceName" (dict "ctx" . "component" "ingester") }}.{{ .Release.Namespace }}.svc.{{ .Values.global.clusterDomain }}:3100$request_uri;
          }

          location = /shutdown {
            proxy_pass       http://{{ include "tempo.resourceName" (dict "ctx" . "component" "ingester") }}.{{ .Release.Namespace }}.svc.{{ .Values.global.clusterDomain }}:3100$request_uri;
          }

          location = /distributor/ring {
            proxy_pass       http://{{ include "tempo.resourceName" (dict "ctx" . "component" "distributor") }}.{{ .Release.Namespace }}.svc.{{ .Values.global.clusterDomain }}:3100$request_uri;
          }

          location = /ingester/ring {
            proxy_pass       http://{{ include "tempo.resourceName" (dict "ctx" . "component" "distributor") }}.{{ .Release.Namespace }}.svc.{{ .Values.global.clusterDomain }}:3100$request_uri;
          }

          location = /compactor/ring {
            proxy_pass       http://{{ include "tempo.resourceName" (dict "ctx" . "component" "compactor") }}.{{ .Release.Namespace }}.svc.{{ .Values.global.clusterDomain }}:3100$request_uri;
          }

          {{- with .Values.gateway.nginxConfig.serverSnippet }}
          {{ . | nindent 4 }}
          {{- end }}
        }
      }

##############################################################################
# The values in and after the `enterprise:` key configure the enterprise features
enterprise:
  # Enable enterprise features. License must be provided, nginx gateway is not installed, instead
  # the enterprise gateway is used.
  enabled: false

  image:
    # -- Grafana Enterprise Metrics container image repository. Note: for Grafana Tempo use the value 'image.repository'
    repository: grafana/enterprise-traces
    # -- Grafana Enterprise Metrics container image tag. Note: for Grafana Tempo use the value 'image.tag'
    tag: v2.0.1
    # Note: pullPolicy and optional pullSecrets are set in toplevel 'image' section, not here

# In order to use Grafana Enterprise Traces features, you will need to provide the contents of your Grafana Enterprise Traces
# license, either by providing the contents of the license.jwt, or the name Kubernetes Secret that contains your license.jwt.
# To set the license contents, use the flag `--set-file 'license.contents=./license.jwt'`
# To use your own Kubernetes Secret, `--set license.external=true`.
license:
  contents: 'NOTAVALIDLICENSE'
  external: false
  secretName: '{{ include "tempo.resourceName" (dict "ctx" . "component" "license") }}'

# Settings for the initial admin(istrator) token generator job. Can only be enabled if
# enterprise.enabled is true - requires license.
tokengenJob:
  enable: true
  extraArgs: {}
  env: []
  extraEnvFrom: []
  annotations: {}
  initContainers: []
  # -- The SecurityContext for tokenjobgen containers
  containerSecurityContext:
    readOnlyRootFilesystem: true

# Settings for the admin_api service providing authentication and authorization service.
# Can only be enabled if enterprise.enabled is true - requires license.
adminApi:
  replicas: 1

  annotations: {}
  service:
    annotations: {}
    labels: {}

  initContainers: []

  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxSurge: 0
      maxUnavailable: 1

  podLabels: {}
  podAnnotations: {}

  nodeSelector: {}
  # -- topologySpread for admin-api pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Defaults to allow skew no more then 1 node per AZ
  topologySpreadConstraints: |
    - maxSkew: 1
      topologyKey: failure-domain.beta.kubernetes.io/zone
      whenUnsatisfiable: ScheduleAnyway
      labelSelector:
        matchLabels:
          {{- include "tempo.selectorLabels" (dict "ctx" . "component" "admin-api") | nindent 6 }}
  # -- Affinity for admin-api pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Soft node and soft zone anti-affinity
  affinity: |
    podAntiAffinity:
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "admin-api") | nindent 12 }}
            topologyKey: kubernetes.io/hostname
        - weight: 75
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "admin-api") | nindent 12 }}
            topologyKey: failure-domain.beta.kubernetes.io/zone

  # Pod Disruption Budget
  podDisruptionBudget: {}

  securityContext: {}

  # -- The SecurityContext for admin_api containers
  containerSecurityContext:
    readOnlyRootFilesystem: true

  extraArgs: {}

  persistence:
    subPath:

  readinessProbe:
    httpGet:
      path: /ready
      port: http-metrics
    initialDelaySeconds: 45

  resources:
    requests:
      cpu: 10m
      memory: 32Mi

  terminationGracePeriodSeconds: 60

  tolerations: []
  extraContainers: []
  extraVolumes: []
  extraVolumeMounts: []
  env: []
  extraEnvFrom: []

# Settings for the gateway service providing authentication and authorization via the admin_api.
# Can only be enabled if enterprise.enabled is true - requires license.
enterpriseGateway:
  # If you want to use your own proxy URLs, set this to false.
  useDefaultProxyURLs: true
  replicas: 1

  annotations: {}
  service:
    annotations: {}
    labels: {}
    # -- If the port is left undefined, the service will listen on the same port as the pod
    port: null

  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxSurge: 0
      maxUnavailable: 1

  podLabels: {}
  podAnnotations: {}

  # Pod Disruption Budget
  podDisruptionBudget: {}

  nodeSelector: {}
  # -- topologySpread for enterprise-gateway pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Defaults to allow skew no more then 1 node per AZ
  topologySpreadConstraints: |
    - maxSkew: 1
      topologyKey: failure-domain.beta.kubernetes.io/zone
      whenUnsatisfiable: ScheduleAnyway
      labelSelector:
        matchLabels:
          {{- include "tempo.selectorLabels" (dict "ctx" . "component" "enterprise-gateway") | nindent 6 }}
  # -- Affinity for enterprise-gateway pods. Passed through `tpl` and, thus, to be configured as string
  # @default -- Soft node and soft zone anti-affinity
  affinity: |
    podAntiAffinity:
      preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 100
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "enterprise-gateway") | nindent 12 }}
            topologyKey: kubernetes.io/hostname
        - weight: 75
          podAffinityTerm:
            labelSelector:
              matchLabels:
                {{- include "tempo.selectorLabels" (dict "ctx" . "component" "enterprise-gateway") | nindent 12 }}
            topologyKey: failure-domain.beta.kubernetes.io/zone

  securityContext:
    {}

    # -- The SecurityContext for gateway containers
  containerSecurityContext:
    readOnlyRootFilesystem: true

  initContainers: []

  extraArgs: {}

  persistence:
    subPath:

  readinessProbe:
    httpGet:
      path: /ready
      port: http-metrics
    initialDelaySeconds: 45

  resources:
    requests:
      cpu: 10m
      memory: 32Mi

  terminationGracePeriodSeconds: 60

  tolerations: []
  extraContainers: []
  extraVolumes: []
  extraVolumeMounts: []
  env: []
  extraEnvFrom: []

  # Ingress configuration
  ingress:
    # -- Specifies whether an ingress for the gateway should be created
    enabled: false
    # -- Ingress Class Name. MAY be required for Kubernetes versions >= 1.18
    # ingressClassName: gateway
    # -- Annotations for the gateway ingress
    annotations: {}
    # -- Hosts configuration for the gateway ingress
    hosts:
      - host: gateway.gem.example.com
        paths:
          - path: /
            # -- pathType (e.g. ImplementationSpecific, Prefix, .. etc.) might also be required by some Ingress Controllers
            # pathType: Prefix
    # -- TLS configuration for the gateway ingress
    tls:
      - secretName: gem-gateway-tls
        hosts:
          - gateway.gem.example.com

配置没动，用的是helm默认配置

验证

首先请求一下go-app的接口，生产一下traceID。

然后通过Loki查询一下日志

选择一下我们的go-app，点击run query，发现有日志。

这里日志简洁是因为没有输出其他额外的信息可输出了，如果是业务api应该是有更多信息可以输出，把TraceID添加到正常日志结构当中就可以了。最后根据，监控 > 日志 > 链路来定位问题。

可以看到，日志中记录了TraceID，我们通过这个TraceID进行查询链路。

可以看到我们通过TraceID，查询到了整个嵌套的链路信息。

目录
